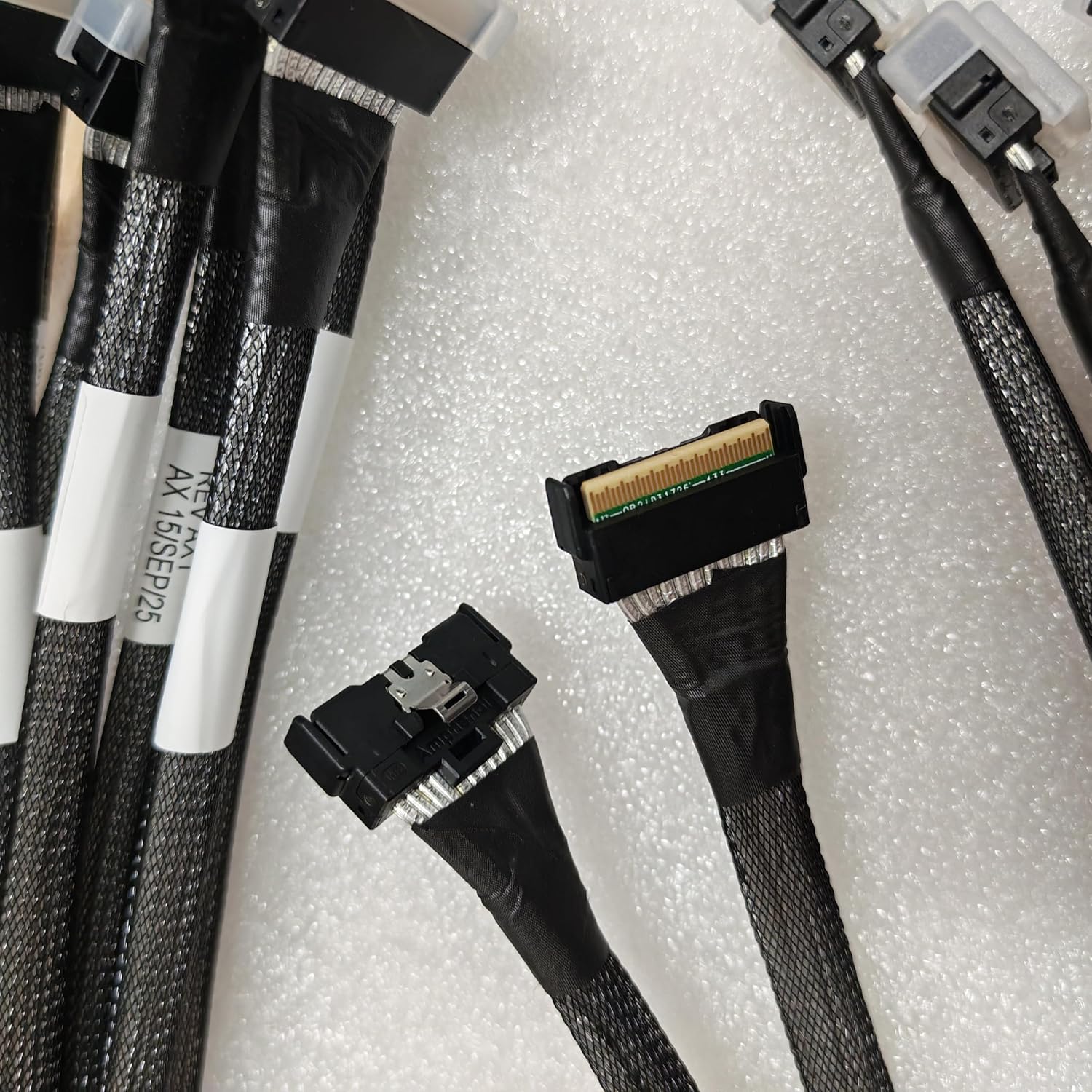

MCIO 8X to MCIO 8X Straight Head to Straight Head PCIe 5.0 high-Speed Data Cable Length 80CM
Product details
| Management number | 239796940 | Release Date | 2026/07/14 | List Price | US$15.72 | Model Number | 239796940 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MCIO 8X Stright TO MCIO 8X Stright Cable Mini Cool Edge IO is a flexible, robust, and economical connector and cable assembly solution that helps with the flexibility of server and network device design, reduces overall space, and expands the coverage range of high data rate signals. This solution can be used for 24Gbps SAS4.0 signal and 32GT/s PCIe5.0 signal. Product Features The compact connector design with a spacing of 0.6 millimeters saves space on terminal devices and supports cable to board and card to board applications 2. PCB card thickness of 1.57mm is compatible with PCIe riser cards 3. The plug of this product is a straight cable plug 4. Supports impedance applications with 85 ohms 5. Supports signal transmission rates up to PCIe5.0 32GT/s 6.30AWG cable Specifications PCIe Gen5 and PCIe Gen6 Mechanical performance 1. Relay: Maximum 55.5N 2. Disassembly force: maximum 49N 3. Rated durability cycle: at least 250 times Electrical performance 1. Voltage: 30VAC per contact 2. Current: 0.5A per contact 3. Contact resistance: The initial value is 20mohm, and the maximum change after pressure testing is 20mohm 4. Insulation withstand voltage: minimum 300VDC, 100ms 5. Insulation resistance: minimum 10M Ω between adjacent pins Signal integrity 1. Matching connector impedance: 85+/-10% ohms @ 25ps RT 2. SCD21: Compliant with SAS4.0 and PCIe4.0 standards 3. FEXT: Compliant with SAS4.0 and PCIe4.0 standards 4. NEXT: Meets SAS4.0 and PCIe4.0 5. Insertion loss: compliant with SAS4.0 and PCIe4.0 standards Environmental compliance of the product RoHS 2.0: Compliant with regulations China RoHS: Yes REACH SVHC: Yes
- Mini Cool Edge IO is a flexible, robust, and economical connector and cable assembly solution that helps with the flexibility of server and network device design, reduces overall space, and expands the coverage range of high data rate signals. This solution can be used for 24Gbps SAS4.0 signal and 32GT/s PCIe5.0 signal. Product Features The compact connector design with a spacing of 0.6 millimeters saves space on terminal devices and supports cable to board and card to board applications
- 2. PCB card thickness of 1.57mm is compatible with PCIe riser cards 3. The plug of this product is a straight cable plug 4. Supports impedance applications with 85 ohms 5. Supports signal transmission rates up to PCIe5.0 32GT/s 6.30AWG cable
- Specifications PCIe Gen5 and PCIe Gen6 Mechanical performance 1. Relay: Maximum 55.5N 2. Disassembly force: maximum 49N 3. Rated durability cycle: at least 250 times
- Electrical performance 1. Voltage: 30VAC per contact 2. Current: 0.5A per contact 3. Contact resistance: The initial value is 20mohm, and the maximum change after pressure testing is 20mohm 4. Insulation withstand voltage: minimum 300VDC, 100ms 5. Insulation resistance: minimum 10M Ω between adjacent pins
- Signal integrity 1. Matching connector impedance: 85+/-10% ohms @ 25ps RT 2. SCD21: Compliant with SAS4.0 and PCIe4.0 standards 3. FEXT: Compliant with SAS4.0 and PCIe4.0 standards 4. NEXT: Meets SAS4.0 and PCIe4.0 5. Insertion loss: compliant with SAS4.0 and PCIe4.0 standards
- Environmental compliance of the product RoHS 2.0: Compliant with regulations China RoHS: Yes REACH SVHC: Yes
| ASIN | B0GLYSYT26 |
|---|---|
| Model | MCIO 8X TO 8X |
| Frequency | 32 GHz |
| Brand Name | Generic |
| Cable Type | MCIO |
| Model Name | MCIO 8X TO 8X |
| Part Number | 001 |
| Manufacturer | HLD |
| Connector Type | Mcio |
| Number of Pins | 8 |
| Maximum Voltage | 30 Volts (AC) |
| Number of Items | 1000 |
| Connector Gender | Female-to-Female |
| Specification Met | Rohs, Reach, China Rohs |
| Compatible Devices | Server |
| Data Transfer Rate | 32 Gigabits Per Second |
| Indoor Outdoor Usage | Indoor |
| Ethernet Cable Category | Cat 8 |
| Recommended Uses For Product | Server and Network Connectivity, High-Speed Data Transfer |
| Other Special Features of the Product | Data Transfer, High Speed |
